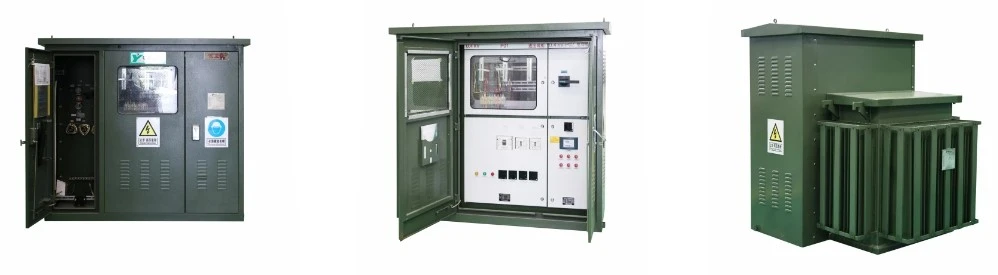

Three Phase 13.2kv 13.8kv 15kv 34.5kv 2000kVA Pad Mounted Transformer
Pad-mounted transformers are made in power ratings from around 75 to around 5000 kVA and often include built-in fuses and
switches. Primary power cables are connected with elbow connectors, which can be operated when energized using a hot stick and
allows for flexibility in repair and maintenance.
Products Features
- Small with compact structure: only 1/5 to 1/3 size as the compact transformer substation(prefabricated substation) of the same rated power;
- Fully sealed and insulated; safe and reliable;
- Low loss, low noise, strong overload capacity;
- Can be equipped with load switch, bayonet fuse, current limiting fuse, oil level gauge, pressure gauge, pressure relief valve, drain valve, surge arrestors, etc;
- For its LV compartment, can be equipped with LV metering, capacitance compensation, ACB, MCCB;
- Applies corrugated heat dissipation, with special process treatment, strong anti-corrosion ability;
- Cold rolled plate, stainless steel or other materials can be selected for the enclosure.
Products parameters
| Model | ZGS Series |
| Rated capacity | 100~3500kVA |
| Rated voltage(HV) | 12kV 12.47kV 13.2kV 13.8kV 15kV 34.5kV......can be customized |
| Rated voltage(LV) | 380V 400V 415V 416V 420V 480V 208V......can be customized |
| Rated frequency | 50Hz / 60Hz |
| Vector group | Dyn11, Yyn0, Dy1, Dyn1 |
| Winding material | Copper / Aluminium |
| Core material | Silicon steel |
| Cooling method | ONAN KNAN |
| Insulation level | as per IEC standard |
| Power frequency withstand voltage | as per IEC standard |
| Lightning impulse withstand voltage | as per IEC standard |
Three Phase 13.2kv 13.8kv 15kv 34.5kv 2000kVA Pad Mounted Transformer
Products FAQ
Q: What's your payment terms?
A: T/T, L/C or negotiation.
Q: Can I get guarantee of products?
A: Yes, every product is quality warrantee under customer correct using the products.
Q: Is OEM/ODM available?
A1: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.
Q: How is the delivery time?
A: It depends your order quantity
Q: How do you control the quality?
A: We have QC team comply with TQM to ensure the quality. Each step is in compliance to the standards. At the same time, we will take photos and shoot video for you if you need.Every product will be fully assembled and carefully tested before packing and shipping.
