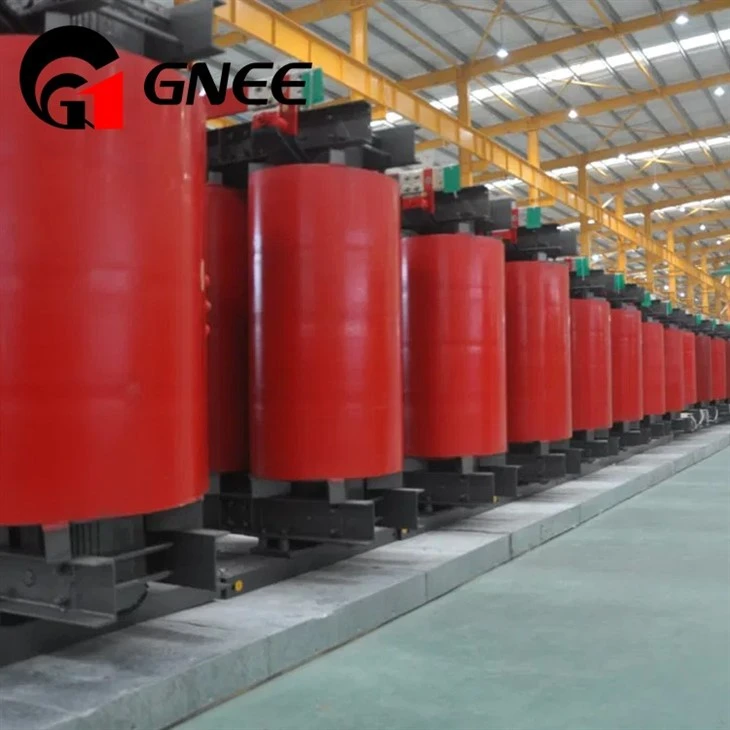

1500kVA Three Phases Dry Type Transformer

Name: China Customized 1500kVA Three Phases Dry Type Transformer Manufacturers Suppliers Factory - GNEE
Brand: GNEE
SKU: 228410843

1500kVA Three Phases Dry Type Transformer in this size range from 10kVA to 10000kVA are used to step down three-phase medium voltage to low voltage for power distribution. These transformers are used primarily in metropolitan areas (public buildings, offices, distribution substations) and are also found in industrial applications. Core The magnetic core has a miter step-lap joint to ensure optimum performance and minimum sound levels. The magnetic steel is cut to length in a sequential way and automatically stacked, ensuring dimensional accuracy and single sheet interlacing within the full stack.

Send Inquiry

Chat Now

PRODUCT INTRODUCTION

Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of 1500kva three phases dry type transformer in China. Welcome to wholesale customized 1500kva three phases dry type transformer at low price from our factory. If you have any enquiry about free sample and cheap products, please feel free to email us.

Product description:
1500kVA Three Phases Dry Type Transformer is structurally distinguished by subsection cylindrical windings cast into formation by chopped glass fiber with axial air passageways provided inside to permit heat diffusion. The appropriate cast technology helps resin penetrate to every gap between windings, layers and subsections to ensure the electrical insulation strength and a low partial discharge value (≤ 5pc).
Prevention of fracturing on castings, restraint of bubble in the casting and reduction of partial discharge value to a minimum are always considered a great challenge to worldwide transformer manufacturers and critical to the manufacturing of cast resin dry-type transformer.

Product features:

1.High reliability: Due to the absence of liquid insulation, dry-type transformers are not prone to liquid leakage during operation, thus offering higher reliability.

2.Environmentally friendly: Dry-type transformers do not require fire and explosion protection equipment, and do not produce toxic gases, making them more environmentally friendly.

3.Easy maintenance: Dry-type transformers do not require maintenance and inspection of cooling systems due to the absence of cooling liquids, reducing maintenance costs and workload.

4.Wide applicability: Dry-type transformers can be used in various environments, including residential areas, commercial areas, and industrial areas.

Transformer TypeTransformer	Three Phases Dry Type Transformer
Model	1500kVA
Number of Phase	Three Phase
Winding Type	Two Winding
Winding Material	Aluminum/Copper
Rated Capacity	50kVA
High Voltage	10/11kV
Low Voltage	0.4kV
Tapping Ran	±2x2.5%
Impedance Voltage	4%
Load Loss (120°C)	1kW
No-load Loss	0.27kW
No-load Current	2%
Frequency	50/60Hz
Connection Group	Yyn0/Dyn11
Cooling Method	ANAF
Insulation Class	F
Thermal Class	F1
Operation Altitude	≤1000m≤ 1000 m

GNNE 1500kVA Three Phases Dry Type Transformer

product-750-750

GNNE Company

types of transformer used in industry types of dry type transformer

FQA

Q: What's your payment terms?
A: T/T, L/C or negotiation.

Q: Can I get guarantee of products?
A: Yes, every product is quality warrantee under customer correct using the products.

Q: Is OEM/ODM available?
A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.

Q: How is the delivery time?
A: It depends your order quantity

Q: How do you control the quality?
A: We have QC team comply with TQM to ensure the quality. Each step is in compliance to the standards. At the same time, we will take photos and shoot video for you if you need.Every product will be fully assembled and carefully tested before packing and shipping.
