Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of epoxy resin cast dry typetransformer in China. Welcome to wholesale customized epoxy resin cast dry typetransformer at low price from our factory. If you have any enquiry about free sample and cheap products, please feel free to email us.
Product Description:

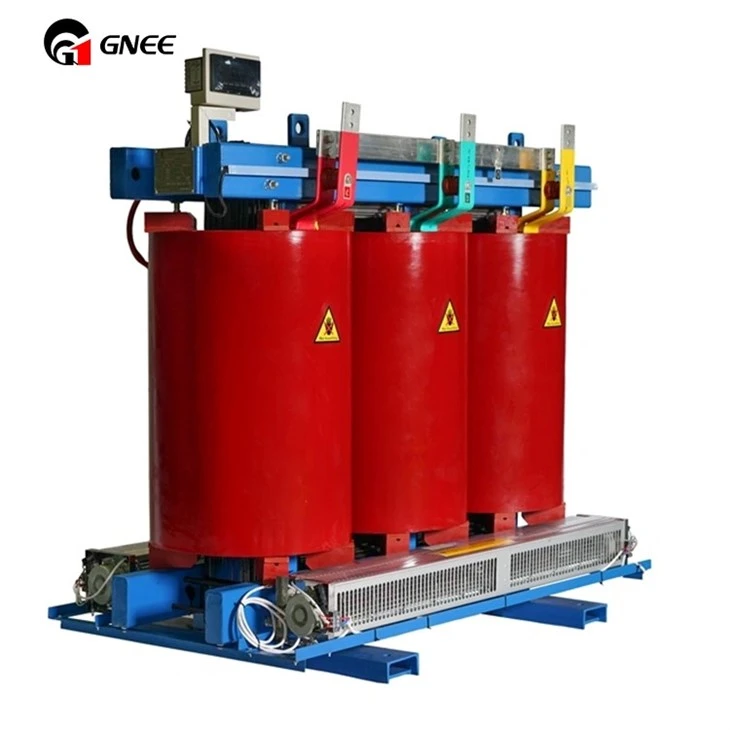

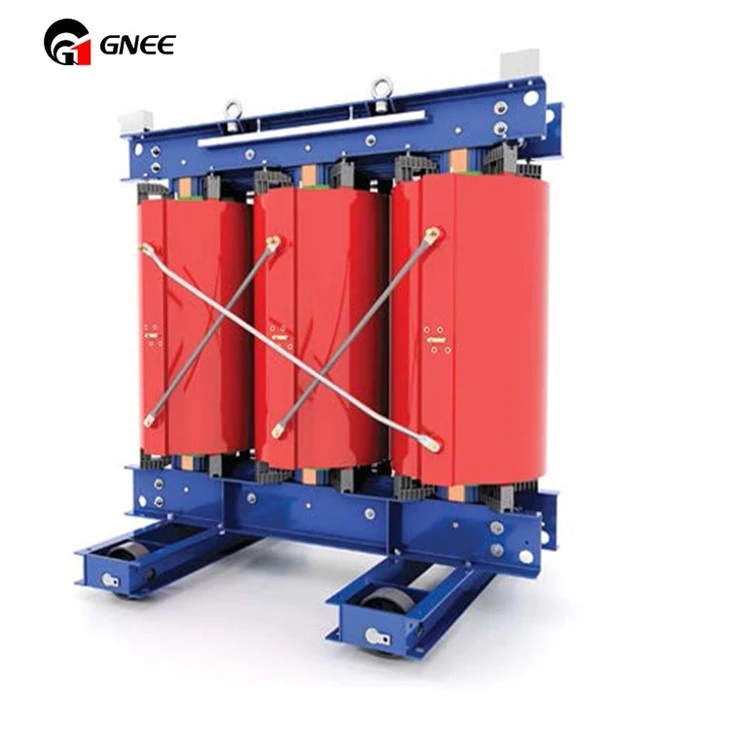

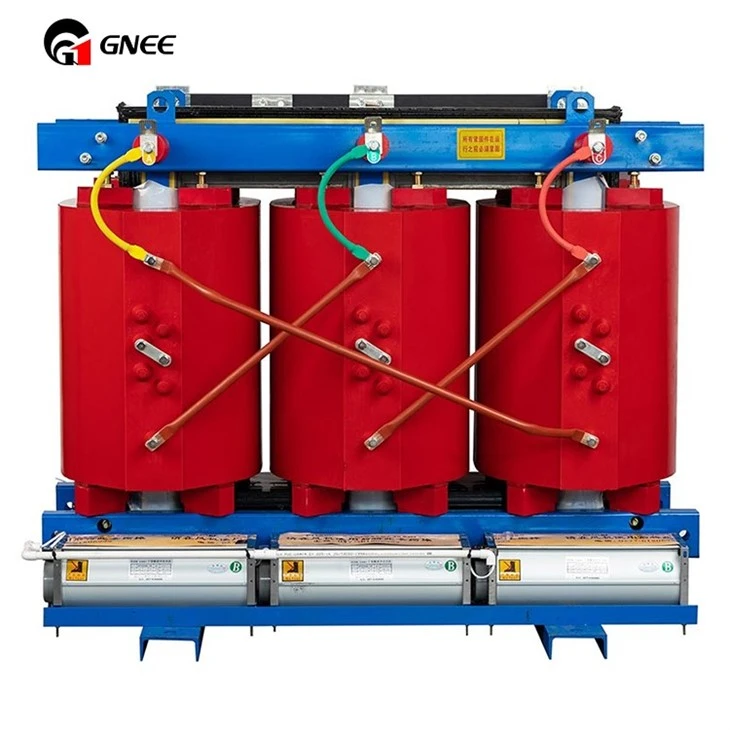

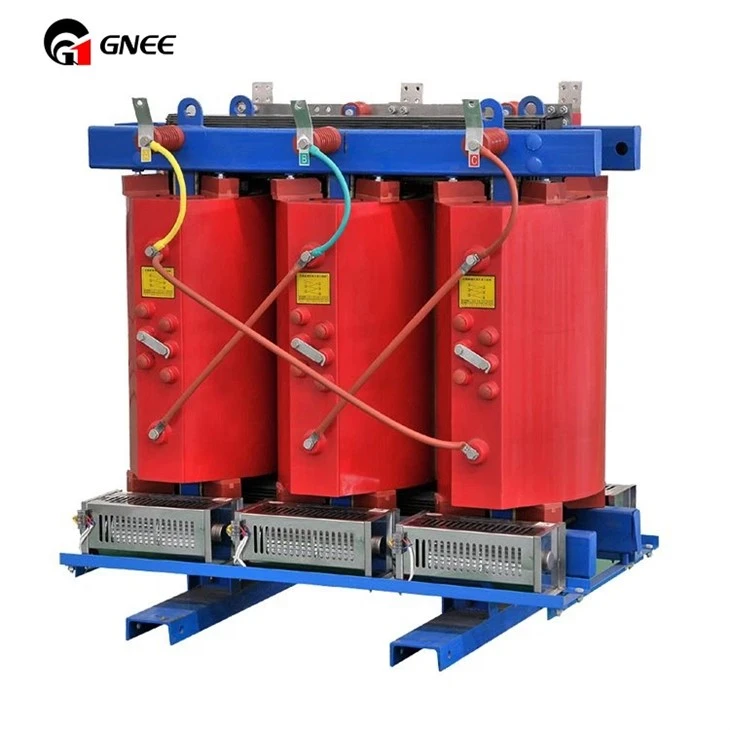

Epoxy resin cast dry type transformer with epoxy resin as insulation material. High and low voltage windings are wound with copper strip (foil), and epoxy resin is poured in vacuum and cured to form a high-strength FRP body structure. Insulation class F, H class. Epoxy resin cast dry type transformer has the characteristics of good electrical performance, strong lightning impact resistance, strong short-circuit resistance, small volume and light weight. The temperature display controller can be installed to display and control the operating temperature of the transformer winding to ensure the normal service life of the transformer.
product Features:
1. Epoxy resin fireproof and explosion-proof
Resin casting, insulation encapsulation is not easy to corrode, fireproof and explosion-proof, safe and reliable.
2 .Low loss Low noise
The core made of new silicon steel sheet has long service life and low loss, no noise, more energy saving and less maintenance costs
3. Cast resin dry type transformer good heat dissipation and strong overload capacity
Cross flow top blowing cooling fan, and new air duct design, fast cooling, high wind speed, enhance overload capacity
4. Reliable and stable operation
High voltage copper wire, low voltage copper foil design, high mechanical strength, small partial discharge, high running stability
|
Transformer Type |
Epoxy Resin Cast Dry Type |
|
Model |
SCB10-50/10 |
|
Number of Phase |
Three Phase |
|
Winding Type |
Two Winding |
|
Winding Material |
Aluminum/Copper |
|
Rated Capacity |
50kVA |
|
High Voltage |
10/11kV |
|
Low Voltage |
0.4kV |
|
Tapping Range |
±2x2.5% |
|
Impedance Voltage |
4% |
|
Load Loss (120°C) |
1kW |
|
No-load Loss |
0.27kW |
|
No-load Current |
2% |
|
Frequency |
50/60Hz |
|
Connection Group |
Yyn0/Dyn11 |
|
Cooling Method |
ANAF |
|
Insulation Class |
F |
|
Thermal Class
|
F1 |
|
Protection Level |
IP00/IP20/IP30 |
|
Climatic Class |
C2 |
|
Environmental Class |
E2 |
|
Temperature Rise |
100K |
|
Operation Altitude |
≤1000m |
|
Size |
950x750x915mm |
|
Weight |
575kg |
Our Company
A Trusted China Transformers-GNEE Epoxy Resin Cast Dry Type Transformer
>>product features
Dry Type ,safe, flame retardant and fireproof, no pollution, can be directly installed in the load centre;
High mechanical strength, strong short-circuit carrying capacity, safe and reliable operation;
Epoxy Resin Cast Dry Type Transformer maintenance-free, easy installation, low comprehensive running cost;
Good anti-lake performance, can operate normally at 100% temperature, and can be put into operation without pre-drying after shutdown;
Low loss, low local discharge, low noise, strong heat dissipation ability, and it can run at 150% of rated load under forced air-cooling condition;
Equipped with perfect temperature protection control system, providing reliable guarantee for the safe operation of the transformer;
The remarkable feature of non-product alloy dry-type transformer is that the no-load loss is small while the economic operation and load rate are relatively low.
