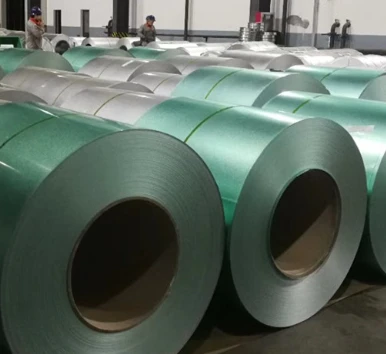

PREPAINTED STEEL SHEET & COIL

Prepaint steel is a bare metal substrate or corrosion-resistant substrate that has had paint applied to one or both sides through a continuous coil coating process, which produces a uniform paint finish. The steel is uncoiled, cleaned, and chemically treated during the process. Depending on product specifications, one or both sides may then be primed and coated, oven cured, and recoiled.

Send Inquiry
Chat Now
PRODUCT INTRODUCTION

PRODUCT INTRODUCTION

Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of prepainted steel sheet & coil in China. Welcome to wholesale customized prepainted steel sheet & coil at low price from our factory. If you have any enquiry about free sample and cheap products, please feel free to email us.



PREPAINTED STEEL SHEET & COILPre-Paint Steel


Applications for Pre-Paint Steel Products

Prepainted steel is used in many applications including:

Metal Roofing

Garage Doors

Lighting Fixtures

Appliances

Heating and Air-Conditioning


Material Thickness: .015"-.135
Max Coil: 45,000 lbs.
ID: 20"- 24"
Entry Width: 15.00"-74.00"
Exit Width: 5.00"- 74.00"
Length: 6.00"- 144"
Width/Length Tolerance: +/-.010"
Max Coil Weight: 50,000 lbs.

Pre-Painted Steel Coil


Material Thickness: .010"-.500"
Min/Max Slit Width: .375"- 84"
Min/Max ID: 20"- 30"
Max OD: 84"
Slit Width Tolerance: +/-.005"



GNEE Steel continually meets industry standards and customer requirements with a quality-first approach. As an ISO 9001:2015-certified company, GNEE Steel strives to develop lasting relationships by providing the right product on time and at a competitive price.

Contact GNEE Steel for prepainted steel sheet and coil product information and availability.

Structural Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
30,33,36,40 0.25 0.9 0.035 0.04     0.2 0.2 0.15 0.06 0.008 0.008 0.025
36T2,45-80 0.25 1.35 0.035 0.04     0.2 0.2 0.15 0.06 0.008 0.008 0.025
45T2 .02- 0.08 .30- 1.0 .03- .07 0.025 .02- .08 0.6 0.2 0.2 0.15 0.06 0.008 0.008 0.025 .01- .03



HSLA Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
45C1 0.22 1.35 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
45C2 0.15 1.35 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
50C1 0.23 1.35 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
50C2 & 55C2 0.15 1.35 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
55C1 0.25 1.35 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
60C1 & 65C1 0.26 1.5 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
60C2 & 65C2 0.15 1.5 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
70C1 0.26 1.65 0.04 0.04     0.2 0.2 0.15 0.16 0.005 0.005 0.005
70C2 0.15 1.65 0.04 0.04     0.2 0.2 0.15 0.16 0.005 0.005 0.005



Common Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
CSA 0.1 0.6 0.03 0.035     0.2 0.2 0.15 0.06 0.008 0.008 0.025
CSB 0.02-.15 0.6 0.03 0.035     0.2 0.2 0.15 0.06 0.008 0.008 0.025
CSC 0.08 0.6 0.1 0.035     0.2 0.2 0.15 0.06 0.008 0.008 0.025
BH 0.012 1.5 0.12 0.03     0.2 0.2 0.15 0.06 0.008 0.008 0.025
FSA 0.1 0.5 0.02 0.035     0.2 0.2 0.15 0.06 0.008 0.008 0.025
FSB 0.02-.15 0.5 0.02 0.03     0.2 0.2 0.15 0.06 0.008 0.008 0.025
DDS 0.06 0.5 0.02 0.025 .01   0.2 0.2 0.15 0.06 0.008 0.008 0.025
EDDS 0.02 0.4 0.02 0.02 .01*   0.2 0.2 0.15 0.06 0.1 0.1 0.15
