Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of s350gd+z zn al mg galvanized steel sheet in China. Welcome to wholesale customized s350gd+z zn al mg galvanized steel sheet at low price from our factory. If you have any enquiry about free sample and cheap products, please feel free to email us.
About GNEE:
S350gd is a grade in the European standard “EN 10346-2009 Continuous Hot-Dip Galvanized Steel Sheet Products”, which is a galvanized steel sheet. S350G is structural steel requiring tensile strength greater than 350MPa, D means galvanized sheet, so s350gd is structural galvanized sheet with yield strength greater than 350MPa
The S350G is available in the following hot dip coatings: S350GD+Z (galvanized), S350GD+ZF (galvanized-iron), S350GD+ZA (galvanized-aluminum), S350GD+AZ (aluminum-zinc), S350GD+AS (galvanized-iron) aluminum silicon).
Features:
S350GD galvanized sheet (coil) has the characteristics of strong coating adhesion, strong erosion resistance, precise control of galvanized layer thickness, high dimensional accuracy, flat profile, good mechanical properties, processing performance and welding performance. They can be used to manufacture interior and exterior panels, structural parts and reinforcements for automobiles.
Galvanized sheet:
|
Thickness |
0.4mm-2mm |
|||
|
Width |
1000mm,1219mm,1250mm,1500mm,1800,2000mm,Customized Size ,etc. |
|||
|
Surface |
Galvanized |
|||
|
Quality Test |
We can offer MTC ( Mill Test Certificate ) |
|||
|
Payment Terms |
L/C T/T ( 30% Deposit ) |
|||
|
Stock or Not |
Enough Stock |
|||
|
Sample |
Provided Freely |
|||
|
Container Size |
20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High) |
|||
|
Delivery Time |
Within 7-15 Working Days |
|||
Properties according to DIN EN 10 346 Steel type
| Short designation | Surface finish | Material number |
| S350GD | +Z,+ZF,+ZA,+ZM,+AZ,+AS | 1.0529 |
S350GD | 1.0529: Mechanical properties (longitudinal)
| Proof stress Rp0,21) MPa min. | Tensile strength Rm2) MPa min. |
Elongation at fracture A803) % min. |
| 350 | 420 | 16 |
S350GD | 1.0529: Chemical composition (heat analysis)
| Percentage by weight % max. | ||||
| C | Si | Mn | P | S |
| 0.20 | 0.60 | 1.70 | 0.10 | 0.045 |
1) Where yield strength is defined, the values apply to the upper yield strength ReH.
2) For all steel types, with the exception of S550GD, a span of 140 MPa can be expected for the tensile strength.
3) Depending on the product thickness, the minimum values of elongation at fracture are reduced as follows: 0.50 mm < t < 0.70 mm (minus 2 units), 0.35 mm < t < 0.50 mm (minus 4 units), and t < 0.35 mm (minus 7 units).
S350GD Z275
S350GD Galvanized Steel Coil with Zinc Weight Z275
Application industry
Prefabricated steel buildings, industrial and commercial roofing and cladding, agricultural buildings, building accessories, light steel frames, building pipes
Summarize
Since the standard potential of zinc is negative than that of iron, the galvanized layer of S350GD galvanized sheet can protect the steel base in water and humid air, which can greatly prolong the service life of the steel. The galvanized layers commonly used in industry include hot-dip galvanizing, electro-galvanizing, mechanical galvanizing, etc.

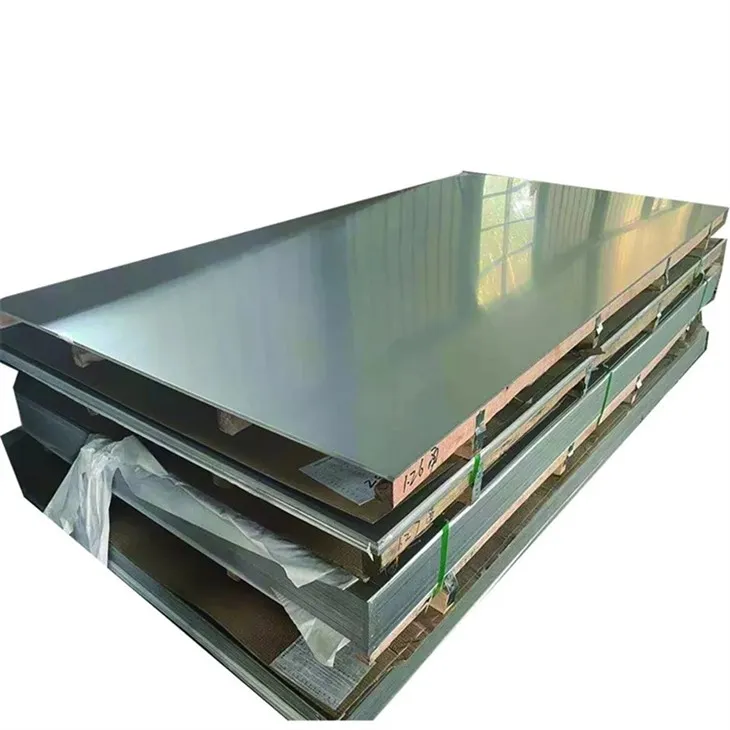

Galvanized Steel Plate Show：
About GNEE:
GNEE Steel has 16 years of experience in exporting galvanized steel products. We are a powerful manufacturer that has passed the audits of the world's top inspection companies ISO, SGS, TUV and BV. Our products have been exported to more than 200 countries and regions. If you are interested, we sincerely welcome you to visit our factory and we will show our greatest sincerity. Complete specifications and favorable prices, welcome to consult!
