Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of hx380lad+z galvanized steel sheet in China. Welcome to wholesale customized hx380lad+z galvanized steel sheet at low price from our factory. If you have any enquiry about free sample and cheap products, please feel free to email us.
GNEE factory:
The steel HX380LAD (X=roll condition, LA=low alloyed, D=hot-dip coatable) is producible with the following coatings: - HX380LA+Z (plating Zn) with coating weights (double-sided) of 100, 140, 200, 225 and 275 g/m² (100 g approximate 7,1 µm per side) - HX380LAD+ZF (plating Zn-Fe) with coating weights (double-sided) of 100 and 120 g/m² (100 g approximate 7,1 µm per side) - HX380LAD+ZA (plating Zn-Al) with coating weights (double-sided) of 095, 130, 185, 200 and 255 g/m² (95 g approximate 7,2 µm per side) - HX380LAD+AZ (plating Al-Zn) with coating weights (double-sided) of 100, 150 and 185 g/m² (100 g approximate 13,3 µm per side) - HX380LAD+AS (plating Al-Si) with coating weights (double-sided) of 060 and 080 g/m² (100 g approximate 17 µm per side) The hot dip galvanizing refined flat products are available by arrangement on ordering with different coating weights (also per side).
Galvanized Steel Plate:
| Commodity | Galvanized Steel Sheet |
| Zinc coated: | 30 g/m2-275 g/m2 |
| Surface treatment | Chromated, oiled and anti-fingerprint |
| Thickness | 0.12-4.0mm |
| Width | 600-2000mm |

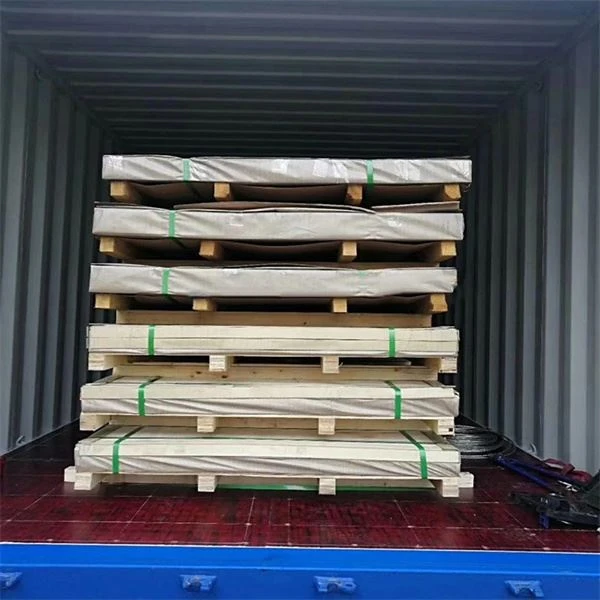

| Packaging | Export standard, seaworthy |
| ID | 508mm or 610mm |
HX380LAD | 1.0934: Properties according to DIN EN 10 346 Steel type
| Short designation | VDA239-100* | Surface finish | Material number |
| HX380LAD | CR340LA | +Z,+ZF,+ZA,+ZM,+AZ,+AS | 1.0934 |
HX380LAD | 1.0934: Mechanical properties (transverse)
| Proof stress Rp 0,2 1) MPa | Tensile strength Rm MPa | Elongation at fracture 2)3) % A80 |
| 380–480 | 440–560 | 19 |
HX380LAD | 1.0934: Chemical composition (heat analysis)
| Percentage by weight % max. | |||||||
| C | Si | Mn | P | S | Al min. | Nb | Ti |
| 0.12 | 0.50 | 1.5 | 0.030 | 0.025 | 0.015 | 0.10 | 0.15 |
1) Where the yield yield strength is defined, the respective values shall apply to the the lower yield strength (ReL).
2) Depending on the product thickness, the minimum values of elongation at fracture are reduced as follows: 0.50 mm < t < 0.70 mm (minus 2 units), 0.35 mm < t < 0.50 mm (minus 4 units), and t < 0.35 mm (minus 7 units).
3) For AS, AZ, ZF and ZM coatings, the minimum A80 value is reduced by 2 units and the minimum r90 value by 0.2.
4) For product thicknesses of 1.5 mm < t < 2 mm, the minimum r90 value is reduced by 0.2, and for t ≥ 2 mm by 0.4.
5) Depending on the product thickness, the minimum r90 value is reduced as follows: 0.50 mm < t < 0.70 mm by 0.2; 0.35 mm < t < 0.50 mm by 0.4, and t < 0.35 mm by 0.6. Also depending on the product thickness, the minimum n90 value is reduced as follows: 0.50 mm < t < 0.70 mm by 0.01; 0.35 mm < t < 0.50 mm by 0.03, and t < 0.35 mm by 0.04.

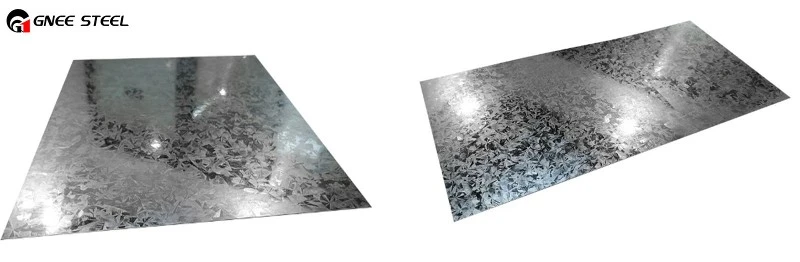

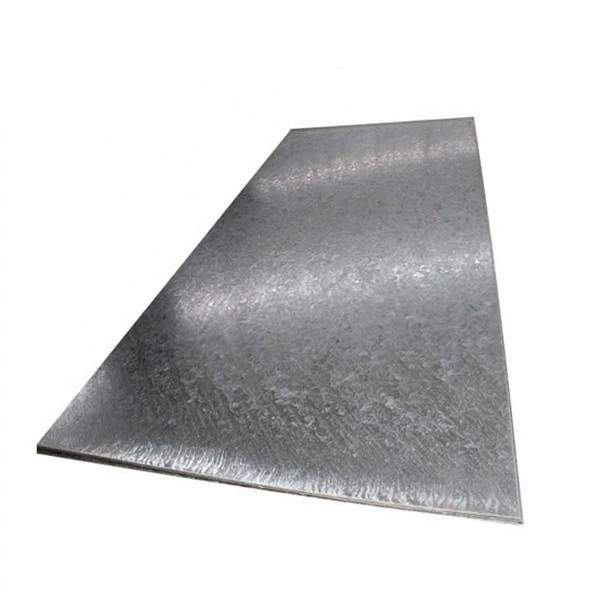

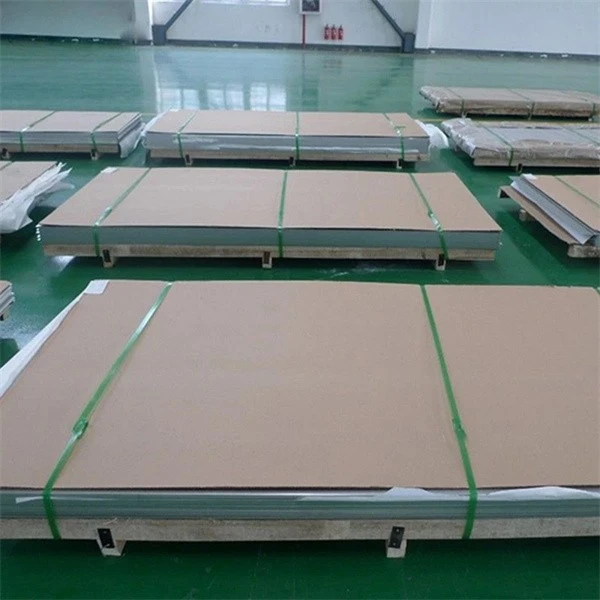

Galvanized Steel Sheet Show:
HX380LAD+Z is a specific type of galvanized sheet, which refers to hot-dip galvanized steel sheet with a high-strength, low-alloy (HSLA) steel base. Compared with standard galvanized sheet, HX380LAD+Z galvanized sheet has higher Strength. Due to the composition of the HSLA steel base, HX380LAD+Z galvanized sheet has high strength. This strength allows the construction of lightweight structures while maintaining structural integrity and load-bearing capacity. HX380LAD+Z also has good formability and can be easily formed, bent and formed into a variety of complex parts and components without affecting its mechanical properties.
FAQ:
Q: Can you assist in design?
A: Yes, we can! We have a strong and experienced design team
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check
Q:ls sample order accepted?
A: Yes,we accept sample order and we can provide design service!
Q: How long does it take for samples and mass production?
A: Usually it will take 3-5 days for ready molds,15-20 days for new molds and free samples after confirmation.25-30 days for mass production.
About GNEE:
GNEE is a professional supplier of silicon steel, oriented silicon steel, non-oriented silicon steel and galvanized steel products, with 16 years of export experience. Our product lines include stainless steel sheets/sheets/rounds/coils/strips/tubes/tubes/rods. Wait and galvanized steel plate/steel plate/coil/strip, a variety of products for you to choose from, with complete specifications and preferential prices, welcome to consult!
