Gnee Steel (Tianjin) Co., Ltd. is one of the most reliable manufacturers and suppliers of cold rolled spcc dc01 st12 steel in China. Welcome to wholesale customized cold rolled spcc dc01 st12 steel at low price from our factory. If you have any enquiry about free sample and cheap products, please feel free to email us.
GNEE STEEL :
China CRC steel coil DC01,DC02,DC03, DC04,DC05,DC06, SPCC cold rolled steel plate/sheet/coil/strip manufacturer
Bright surface of cl-olled plate, easy coating processing, many varieties and wide applications, and also has the characteristics of high stamping performance, no aging and low yield point, so cold-rolled plate has a wide range of aplications, mainly used in automobiles, printed iron drums, buildings, building materials, bicycles and so on.
1.The cold-rolled coil products are accurate in size, uniform in thickness, and the thickness difference of the coils generally does not exceed 0.01-0.03 mm or less, which can meet the requirements of high-precision tolerances.
2.It is possible to obtain extremely thin strips that cannot be produced by hot rolling (up to 0.001 mm or less).
DC01 – This grade can be used for simple forming work, for example Bending, embossing, beading and pulling are used. DC03 – This grade is suitable for forming requirements such as Deep drawing and difficult profiles suitable. DC04 – This quality is suitable for high deformation requirements.
DC01 steel (1.0330 material) is a European standard cold-rolled quality low-carbon steel flat product for cold forming. In BS and DIN EN 10130 standard, it contains 5 other steel grades: DC03 (1.0347), DC04 (1.0338), DC05 (1.0312), DC06 ( 1.0873) and DC07 (1.0898), the surface quality is divided into 2 types: DC01-A and DC01-B. In addition, this steel is also used under electrogalvanizing conditions. The designation of the steel is DC01+ZE (or 1.0330+ZE), and the standard is EN 10152.
|
Commodity |
Cold rolled steel coil SPCC St12 DC01 Roll 0.12-6.0mm thickness galvanized steel coil strip |
|
Grade |
DC01,DC02,DC03,A36,SS400,A283 Gr.A,.Gr.B.Gr.C,A285 Gr.A,.Gr.B.Gr.C,Q235,Q195,Q215, S185,SM400,S235J0,S235JR,S235J2,Q275,Gr50, GR.70,S355J0,SM570,E335,S235J2W,Q355,SMA490,S355J2W,Q265,P235GH, |
|
Standard |
ISO,JIS,ASTM,AS EN |
|
Mechnical |
Commercial / Drawing / Deep Drawing /Extra Deep Drawing/Structural quality |
|
Hardness |
Softy, half hard ,hard quality |
|
Thickness |
0.12-6.0mm |
|
Width |
600-1500mm |
|
Coil weight |
3-20MT/Coil or as your request |
|
Packaging |
Export standard, seaworthy |
|
ID |
508mm or 610mm |
|
Trade Term |
FOB, CFR, CIF |
|
Transport Type |
Container, bulk and train |
|
Loading port |
Tianjin, Qingdao,Shanghai |
|
Delivery time |
15-35 days after confirmed order |
|
Chemical Composition |
||||
|
C |
Mn |
P |
S |
Alta |
|
DC01, SPCC |
≤0.12 |
≤0.60 |
≤0.045 |
≤0.045 |
|
DC02, SPCD |
≤0.10 |
≤0.45 |
≤0.035 |
≤0.035 |
|
DC03, SPCE |
≤0.08 |
≤0.40 |
≤0.030 |
≤0.030 |
|
DC04, SPCF |
≤0.06 |
≤0.35 |
≤0.025 |
≤0.025 |
|
Mechanical Property |
||||
|
Grade |
Yield strength RcL Mpa |
Tensile strength Rm Mpa |
Elongation A80mm % |
|
|
DC01 |
140-280 |
270-410 |
≥28 |
|
|
DC02 |
140-240 |
270-370 |
≥34 |
|
|
DC03 |
120-210 |
270-350 |
≥38 |
|
|
DC04 |
120-180 |
270-330 |
≥40 |
|
|
Grade |
Yield strength Relb) MPa |
Tensile strength RmMPa |
||
|
SPCC |
130-300 |
270-410 |
||
|
SPCD |
120-240 |
270-370 |
||
|
SPCE |
120-210 |
270-350 |
||
ST12 is the German standard (DIN1623), equivalent to DC01 of EN10130 and SPCC of JIS
ST12 is ordinary cold-rolled steel, ST13 is stamping-grade cold-worked steel, and ST14 is deep-drawing grade.
ST12: Represented as the most common steel grade, it is basically the same material as q195, SPCC, and DC01 grades.
ST12 mechanical properties: Yield strength a MPa≤280; Tensile strength MPa≤270～410; Elongation after break (L0=80mm, b=20mm)%≥28
Cold rolled steel is our most common and commonly used cold rolled product. Its grades can generally be divided into: ST12, ST13, ST14, ST25, ST16, etc.; Mechanical properties: It is the most common and basic steel grade. In principle (steel factory regulations) it can only be bent and formed, and stamping is not allowed. .
Cold-rolled plates and strips are widely used, such as automobile manufacturing, electrical products, rolling stock, aviation, precision instruments, food cans, etc.

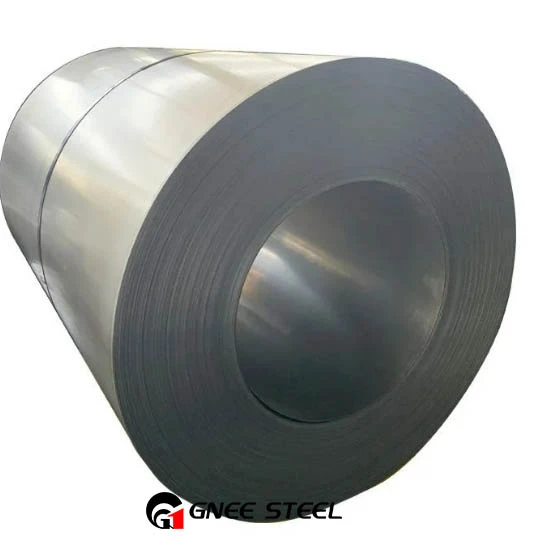

Cold Rolled SPCC DC01 St12 Steel Coils Show:
Cold Rolled Steel Coil Certificate:
Cold Rolled Steel Test:
Cold Rolled SPCC DC01 St12 Steel Packing and shipping:
Cold rolled coil customer case:
GNEE STEEL Team:
FAQ:
Q1. What are your company's main products?
A1: Our main products are cold rolled steel coils/galvanized steel coils/galvanized steel sheets/PPGI/PPGL/silicon steel, etc.
Q2: Can you send samples?
A2: Of course, we can provide customers with free samples and express delivery services to all over the world.
Q3: What product information do I need to provide?
A3: Please provide the grade, width, thickness, surface treatment requirements you have and the quantity you need to purchase.
Q4: This is my first time to import steel, can you help me?
A4: Of course, we have agents to arrange shipment and we will work with you to complete it.
Q5: What are the advantages of your company?
A5: We have many professionals, technicians, more competitive prices and the best after-sales service than other cold-rolled galvanized steel.
